Product Center

Detachable

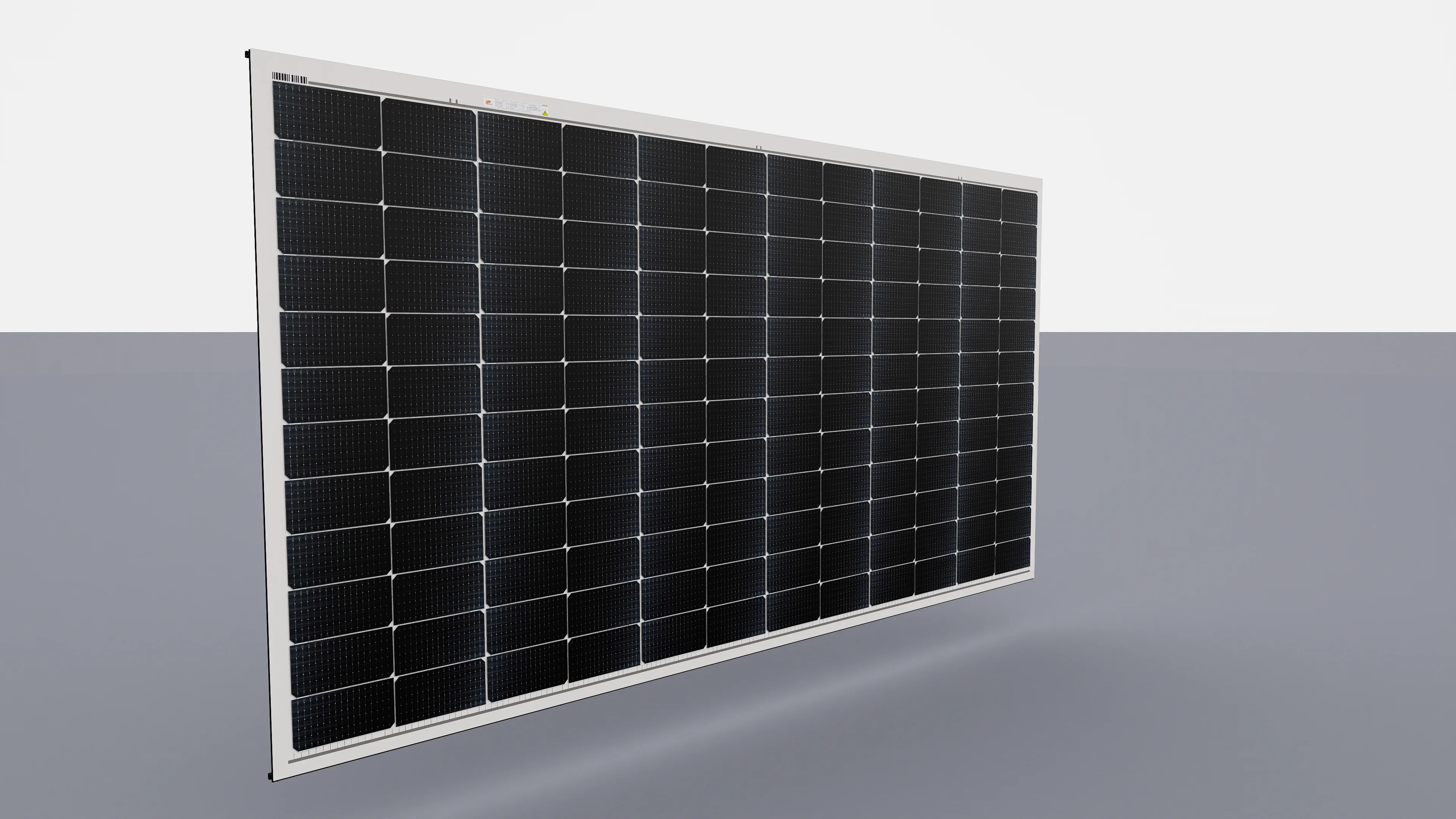

SolarNoah MAX

TPO/PVC waterproof roofs, color steel tiles, vibration environments

Core Highlights

Light-weightWeighing only 3.8 kg/m², about 30% of traditional glass modules.

Micro-crack ResistanceTSR-Armor™ Technology: Resistant to hail and vibration without cell Cracks and power losses.

Hotspot Optimization6-bypass architecture improves
current rerouting, curbing hot-spots in shading & harsh conditions.

Detachable for maintenanceInstalled with special clamps, single module can be replaced independently and efficiently.

Ventilation and heat dissipationBack overhead structure provides better heat dissipation for higher revenue.

Technical Parameters

Module Power

550W ~ 560W

Dimensions

2250 x 1200 x 25 mm

Weight/m²

3.8 kg/m² (incl. frame)

Installation

Quick-Clamps

Front Load

5400 Pa

Wind Resistance

Level 17

Document Download

Light-Rigid Series

Lightweight rigid photovoltaic modules for full roof paving and BIPV applications

Frameless

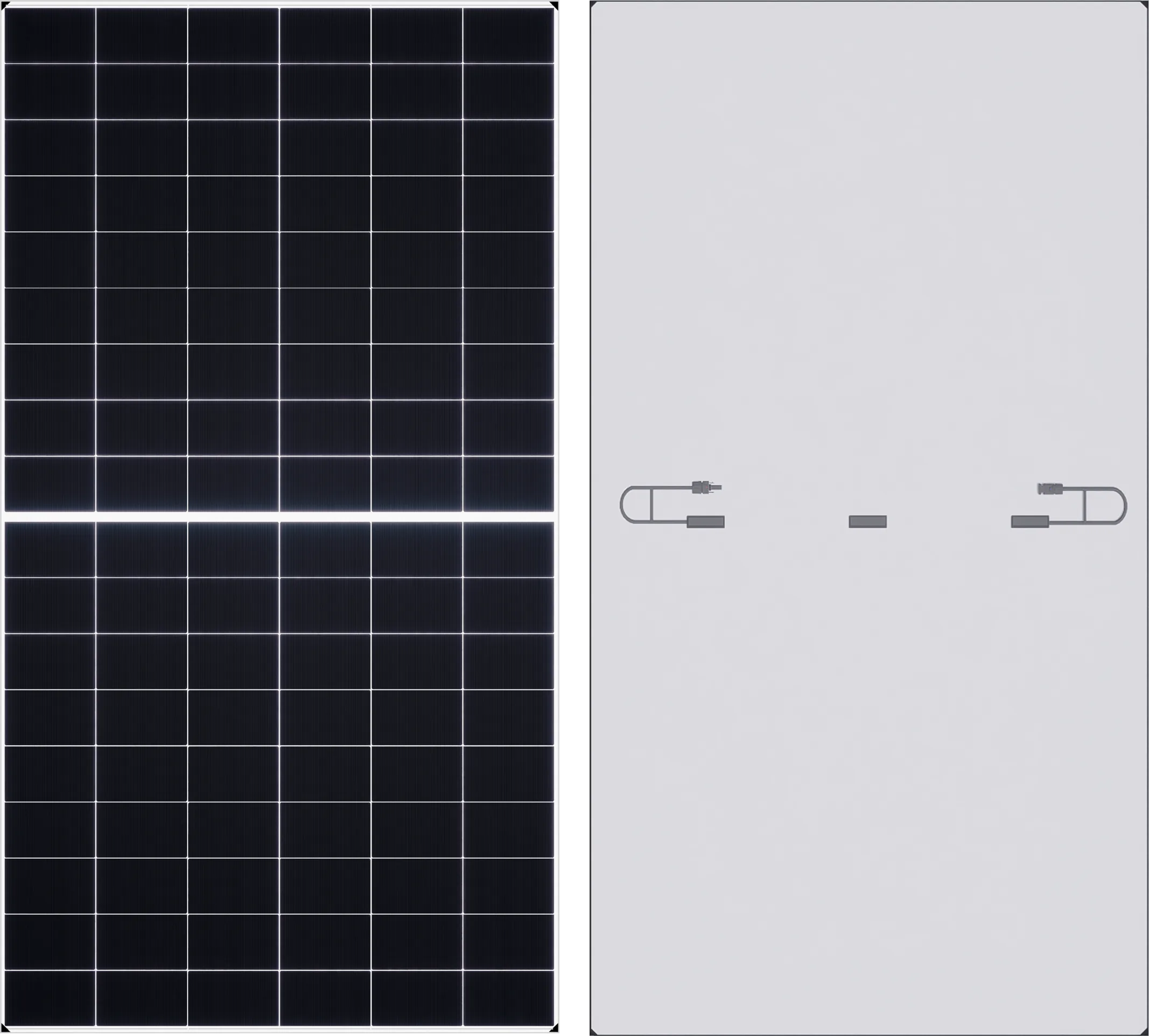

SolarPega

Full roof paving, roofs requiring personnel access for O&M

Core Highlights

LightweightWeighing only 5.9 kg/m², reducing weight of about 60% compared to traditional modules.

Micro-crack ResistanceTSR-Armor™ Technology: Resistant to step-on and vibration without cell Cracks and power losses.

Frameless designBorderless on all four sides, preventing dust accumulation and enabling rainwater self-cleaning.

Glue-bonding installationDirect bonding with structural adhesive without guide rails, improving efficiency by 50%.

Technical Parameters

Module Power

510W ~ 520W

Dimensions

1957 x 1130 x 2.7 mm

Weight/m²

5.9 kg/m²

Installation

Glue-Bonding

Front Load

3600 Pa

Wind Resistance

Level 17

Document Download

Frameless

SolarPegaL

Full roof paving, roofs requiring personnel access for O&M

Core Highlights

More lightweightWeighing only 4.5 kg/m², reducing weight by more than 60% compared to traditional modules.

Micro-crack ResistanceTSR-Armor™ Technology: Resistant to step-on and vibration without cell Cracks and power losses.

Frameless designBorderless on all four sides, preventing dust accumulation and enabling rainwater self-cleaning.

Glue-bonding installationDirect bonding with structural adhesive without guide rails, improving efficiency by 50%.

Technical Parameters

Module Power

490W ~ 510W

Dimensions

1957 x 1130 x 2.7 mm

Weight/m²

4.5 kg/m²

Installation

Glue-Bonding

Front Load

3600 Pa

Wind Resistance

Level 17

Document Download

Framed

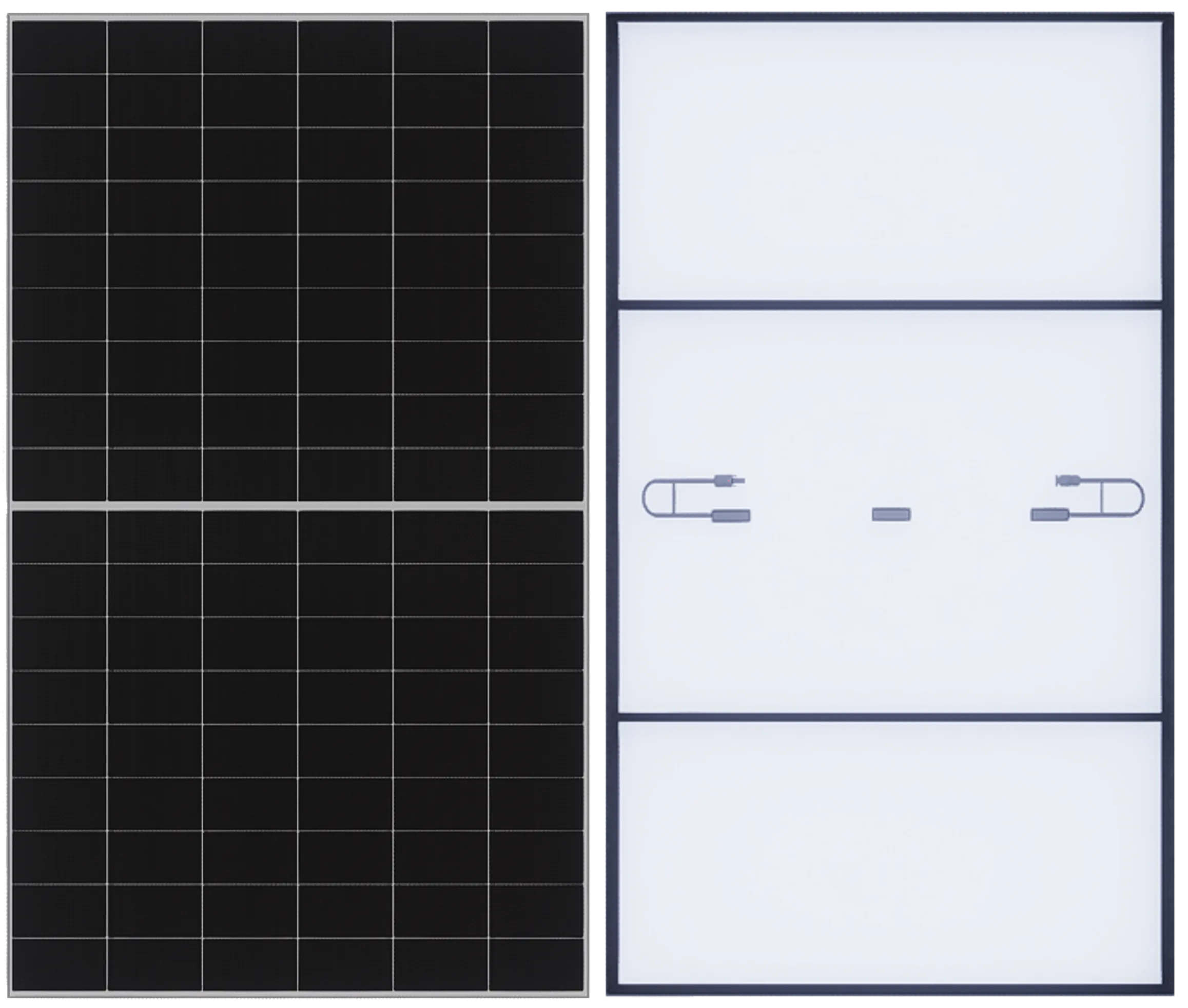

SolarPegaF

BIPV waterproof roofs, high seismic requirement scenarios

Core Highlights

LightweightWeighing of 7.3 kg/m², reducing weight by more than 30% compared to traditional modules.

Micro-crack ResistanceTSR-Armor™ Technology: Resistant to step-on and vibration without cell Cracks and power losses.

Dust-proof designFrame is flush with the module, preventing dust accumulation on all four sides.

BIPV full waterproofingCombined with waterproof brackets to achieve a fully waterproof roof structure.

Technical Parameters

Module Power

510W ~ 520W

Dimensions

1961 x 1134 x 25.5 mm

Weight/m²

7.3 kg/m²

Installation

Quick-Clamps

Front Load

3600 Pa

Wind Resistance

Level 17

Document Download

Framed

SolarPegaFL

BIPV waterproof roofs, high seismic requirement scenarios

Core Highlights

Ultra-lightweightWeighs only 5.9 kg/m², 50% lighter than traditional modules.

Micro-crack ResistanceTSR-Armor™ Technology: Resistant to step-on and vibration without cell Cracks and power losses.

Dust-proof designFrame is flush with the module for 4-sided dust resistance.

BIPV full waterproofingIntegrates with waterproof brackets to achieve a fully waterproof roof structure.

Technical Parameters

Module Power

490W ~ 510W

Dimensions

1961 x 1134 x 25.5 mm

Weight/m²

5.9 kg/m²

Installation

Quick-Clamps

Front Load

3600 Pa

Wind Resistance

Level 17

Document Download

Fire-resistive Backsheet

SolarPega-S

Full roof paving | Walkable | Anti-dust Class A Fire Rated

Core Highlights

Lightweight & High-strengthWeight only 6.8 kg/m², 40% lighter than conventional glass-glass modules.

Class A Fire RatedPassed strict fire safety test, suitable for buildings with high fire protection requirements.

Walkable & Anti-dustFlush frame design prevents dust accumulation; panels can be walked on during O&M without micro-cracks.

Quick-clamp InstallationNo rail required, quick-clamp mounting system reduces installation time by 50%.

Technical Parameters (Based on Official Datasheet)

Module Power

510W ~ 520W

Dimensions

1961 x 1134 x 3.55 mm

Weight/m²

6.8 kg/m²

Installation

Glue-Bonding

Front Load

3600 Pa

Wind Resistance

Level 17

Document Download

Fire-resistive Backsheet

SolarPegaL-S

Low-bearing roofs | Weight-sensitive structures Class A Fire Rated

Core Highlights

Ultra-LightweightWeight only 5.5 kg/m², using 1.1mm reinforced glass, 50% lighter than standard modules.

Class A Fire RatedPassed strict fire safety test, suitable for buildings with high fire protection requirements.

Micro-crack ResistanceTSR-Armor™ Technology ensures durability under step-on and transportation vibration.

Self-cleaning SurfaceAnti-dust design reduces cleaning frequency.

Technical Parameters (Based on Official Datasheet)

Module Power

500W ~ 510W

Dimensions

1957 x 1130 x 3.05 mm

Weight/m²

5.5 kg/m²

Installation

Glue-Bonding

Front Load

2400 Pa

Wind Resistance

Level 17

Document Download

Fire-resistive Backsheet

SolarPegaF-S

BIPV waterproof roofs | High seismic zones Class A Fire Rated

Core Highlights

Lightweight BIPVWeighs 8.2 kg/m² with full 25.5mm frame, 30% lighter than conventional BIPV modules.

Class A Fire RatedHighest fire protection level, safe for all types of buildings (industrial, commercial, residential).

Full Waterproof SystemIntegrates with waterproof brackets to form leak-proof roof, ideal for BIPV projects.

Micro-crack ResistanceTSR-Armor™ Technology endures high wind load and seismic activity.

Technical Parameters (Based on Official Datasheet)

Module Power

510W ~ 520W

Dimensions

1961 x 1134 x 25.5 mm

Weight/m²

8.2 kg/m²

Installation

Quick-Clamps (Rail-less)

Front Load

3600 Pa

Wind Resistance

Level 17

Document Download

Fire-resistive Backsheet

SolarPegaFL-S

Lightweight BIPV | Low-load industrial roofs Class A Fire Rated

Core Highlights

Ultra-light BIPV StructureWeighs only 6.8 kg/m² with full waterproof frame, 50% lighter than conventional BIPV modules.

Class A Fire RatedHighest fire safety level, suitable for buildings with strict fire codes.

Anti-dust Flush FrameFrame flush with glass – prevents dust accumulation, rainwater self-cleaning.

Walkable & Maintenance-friendlyTSR-Armor™ Technology allows stepping during O&M without micro-cracks.

Technical Parameters (Based on Official Datasheet)

Module Power

500W ~ 510W

Dimensions

1961 x 1134 x 25.5 mm

Weight/m²

6.8 kg/m²

Installation

Quick-Clamps (Rail-less)

Front Load

2400 Pa

Wind Resistance

Level 17

Document Download
